When upgrading to an ergonomic height-adjustable standing desk, you’ll quickly hit a major fork in the road: Should you go with a single motor or a dual motor desk?
While they might look almost identical on the surface, the mechanism under the desktop determines how fast your desk moves, how much weight it can carry, how long it will last, and how much it will impact your wallet.
Here is everything you need to know to make the right choice for your setup.
The Mechanical Difference Explained

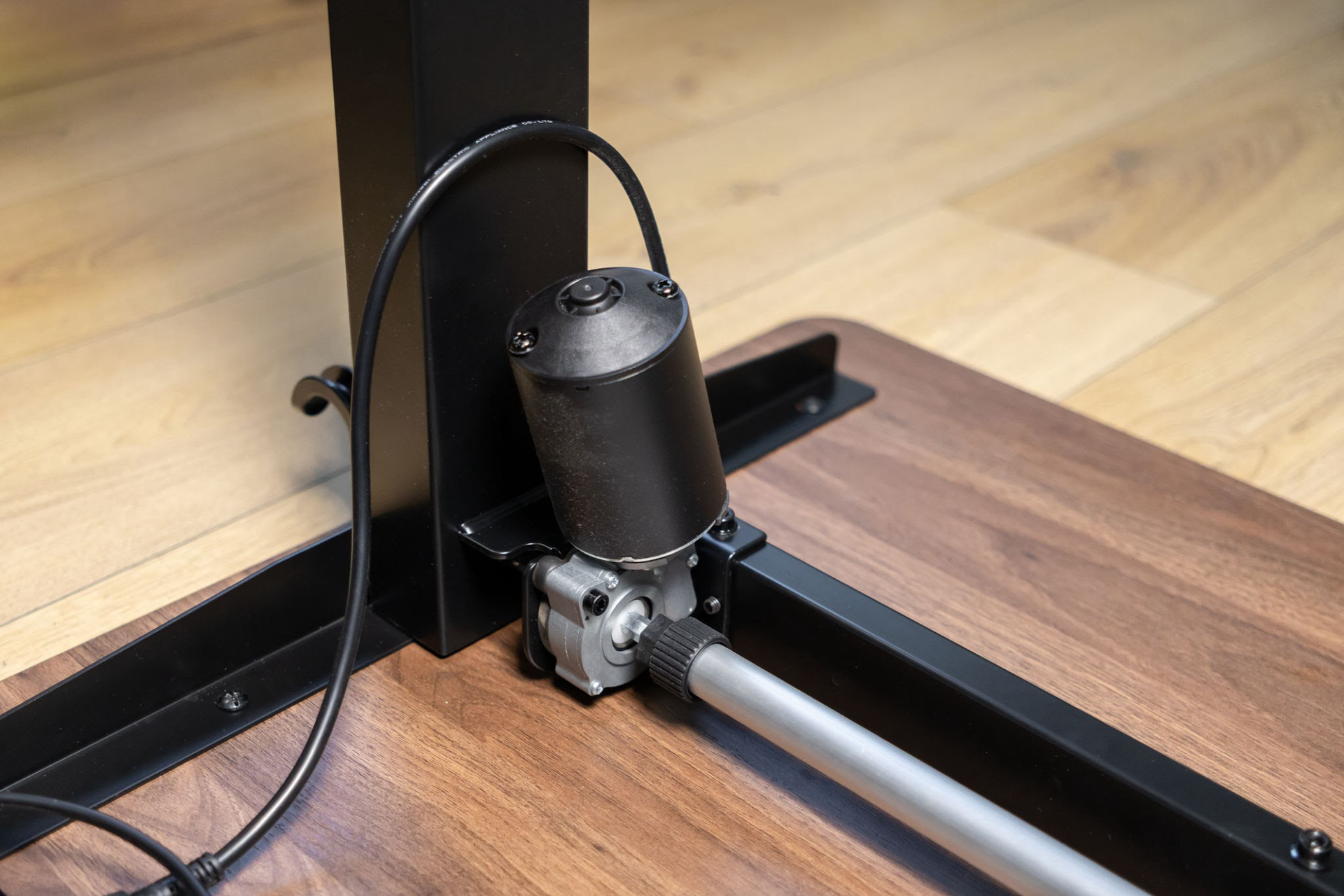

Single motor setup using a drive rod to lift both legs. Source: Alina Vytiuk / Getty Images
Single Motor Desks: A single motor is attached to one leg and uses a hexagonal drive rod (drive shaft) running under the desktop to transfer power to the opposite leg.
Dual Motor Desks: Each leg has its own dedicated motor concealed inside the leg column (or attached directly at the top of each leg). An electronic controller synchronises the speed and height of both motors simultaneously.
Head-to-Head Comparison
Feature | Single Motor | Dual Motor |
Weight Capacity | 70 - 80 kg | 100 - 160+ kg |
Adjustment Speed | Slower (~25mm per sec) | Faster (35-40mm per sec) |
Noise Level | Slightly higher (mechanical drive rod gear humming) | Quieter, smoother glide |
Stability | Good for lightweight, standard desk setups | Superior stability, especially at max height |
Price Point | Budget friendly | Mid-to-High |
1. Single Motor Standing Desks
The Pros:
- Cost-Effective: Significantly cheaper to manufacture and buy. Great for budget-conscious home offices.
- Sufficient for Basic Setups: If you only use a single laptop, a monitor, and light desk accessories, a single motor has plenty of power.
- Energy Efficient: Draws less overall power during adjustment cycles.
The Cons:
- Lower Weight Limits: Unevenly distributed weight (e.g., heavy desktop PC on one side) can strain the drive rod and motor.
- Slower & Louder: The mechanical transfer of power creates slightly more operational noise and friction.
- Potential Uneven Lifting: Over years of heavy use, drive rod play can lead to minor height discrepancies between the left and right legs.
2. Dual Motor Standing Desks
The Pros:
- Heavy-Duty Lifting Power: Effortlessly lifts heavy setups, including multiple ultrawide monitors, heavy studio gear, solid wood tops, and full PC towers.
- Smoother & Quieter: Two balanced motors working together lift the desk effortlessly with minimal noise.
- Enhanced Stability: Dual-motor frames frequently utilize 3-stage leg columns, offering greater stability at maximum height and accommodating both very short and very tall users.
- Longer Lifespan: Because workload is distributed across two motors, neither works as hard, leading to better long-term durability.
The Cons:
- Higher Price Tag: Typically costs RM350 to RM1,000 more than single-motor counterparts.
- Slightly Heavier Frame: Dual-motor desk frames are heavier, making assembly and moving slightly more labor-intensive.
The Verdict: Which One Is Right for You?
Choose a Single Motor Desk if:
You are on a strict budget.
You have a light workstation (laptop + single monitor setup).
You rarely adjust height throughout the day or don't mind a slightly slower transition.
Choose a Dual Motor Desk if:
You have a heavy setup (multiple monitors, solid wood top, gaming PC on top).
You want maximum stability with zero wobble at standing height.
You plan to use the desk daily for years and want the smoothest, quietest operation.
